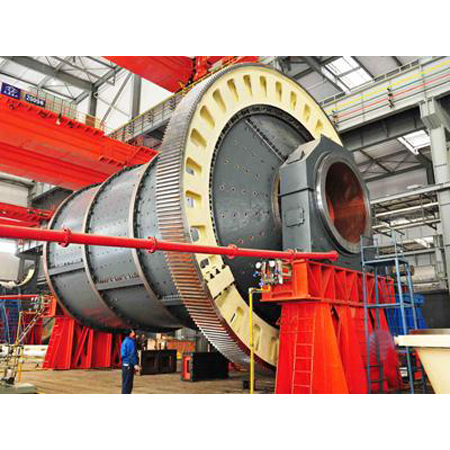

Rolling Bearing Ball Mill Machine

Rolling Bearing Ball Mill Machine
Rolling Bearing Ball Mill Machine
Send Inquiry
Product Code : 01
Price And Quantity
Product Description

Owing to a long-term destination for our business, we are engaged in providing a wide gamut of Rolling Bearing Ball Mill Machine. The given ball mill machine is widely used in mineral processing, building materials and chemical industry. High operational fluency, easy to operate, highly durable, precisely engineered and user friendly interface are qualities of offered ball mill machine. Our ball mill machine is appreciated in the market for easy operation and high efficiency. Customers can avail this Rolling Bearing Ball Mill Machine from us at market-leading prices.

1 wet grid ball mill technical performance table

Model parameters Diameter
Of Tube
Tube length Effective
Volume
Mill speed Grinding load Transmission
Mode
Motor Overall size
(L * w * h)
Reference
Weight
Remarks
power speed

mm mm m3 r/min

kw r/min m t
MQS12*24 1500 3000 5 26.6 9 edge 95 742 6.4*2.9*2.6 18 Drum feeder
MQS15*15 1500 1500 2.3 29.2 4.8
60 725 5.7*3.2*2.8
13.7
MQS15*24 1500 2400 3.7 29.2 7.6
90 730 6.9*3.3*2.8 16.5
MQS15*30 1500 3000 4.6 26.6 10 edge 90 742 7.6*3.4*2.8 19.5 rubber liner
MQS21*30 2100 3000 9.4 22.1 20
220 740 8.5*4.65*3 45
MQS24*30 2400 3000 12.2 21 25
250 980 8.8*4.7*4.4 55
MQS24*70 2400 7000 26.66 21 54
475 740 14.3*5.8*4.4 67 rubber liner
MQS27*21 2700 2100 10.6 19.7 22
280 733 9.7*6.5*4.8 69
MQS27*36 2700 3600 18.5 20.5 39
400 187.5 12*5.8*4 74
MQS27*40 2700 4000 20.5 20.24 38
400 187.5 12.4*5.8*4.7 77
MQS27*60 2700 6000 34.34 19.5 53
630 589 12*5.7*4.5 84
MQS29*41 2900 4100 26 19.34 42
450 740 9.9*6.1*5.1 76.1
MQS31*64 3100 6400 43.7 18.3 56
1000 167 15.2*6.98*5.8 141
MQS32*31 3200 3100 22.65 18.3 46.9
500 167 13.9*7.3*6.0 109
MQS32*36 3200 3600 26.3 18.3 54
630 167 14.3*7.3*6.0 116.94
MQS32*40 3200 4000 29.2 18.2 60
710 980 14.7*7.3*6.0 121.4
MQS32*45 3200 4500 32.9 18.3 68.5
800 167 15.2*7.3*5.9 126.23
MQS32*54 3200 5400 39.4 18.3 81.6
1000 167 16.6*7.3*6.1 135.4
MQS36*45 3600 4500 41.4 17.25 86
1000 167 13.5*7.3*6.3 153.1
MQS36*60 3600 6000 54 17.3 112 edge 1400 167 15.5*8.3*6.3 190.6
MQS36*85 3600 8500 79 17.4 144
1800 743 20*8.2*7.1 260.89
MQS40*60 4000 6000 69.8 16 126
1500 200 17.4*9.34*7.5 215.5
MQS40*67 4000 6700 76 16 155
1600 980 16*8.43*7.5 235.2
MQS40*13.5 4000 13500 157 16.5 280
3300 980 24.2*9.9*7.8 284 /375 rubber liner



2 overflow type ball mill technical performance table  :

Model parameters Diameter
Of Tube
Tube length Effective
Volume
Mill speed Grinding load Transmission
Mode
Motor Overall size
(L * w * h)
Reference
Weight
Remarks
power speed

mm mm m3 r/min

kw r/min m t
MQY15*30 1500 3000 5 26.6 9 edge 95 742 7.4*3.4*2.8 18.5 Drum feeder
MQY15*36 1500 3600 5.7 26.6 10.6
95 742 8.0*3.4*2.8 17.22 rubber liner
MQY18*61 1830 6100 13.4 24.5 24.6
220 736 10.2*5.1*4.0 37.3
MQY21*30 2100 3000 9.4 22.1 15
200 740 8.5*4.65*3 45
MQY24*30 2400 3000 12.2 21 22.5
250 980 8.8*4.7*4.4 55
MQY24*70 2400 7000 26.66 21 48
475 740 14.3*5.8*4.4 67 rubber liner
MQY27*36 2700 3600 18.5 20.5 39
400 187.5 9.8*5.8*4.7 61.34
MQY27*40 2700 4000 20.5 20.24 38
400 187.5 10.4*5.8*4.7 70
MQY27*45 2700 4500 23.5 20.5 43.5
500 187.5 12.5*5.8*4.7 76
MQY27*60 2700 6000 34.34 19.5 53
630 589 13.5*5.9*4.7 71.2 rubber liner
MQY28*54 2800 5400 30 19.5 55.2
630 167 13*5.83*4.7 97.8
MQY28*80 2800 8000 43 20 78.6
800 137 16.5*7.3*5 115 Coal water slurry
MQY30*11 3000 11000 69.2 17.3 100 core 1250 429 28.9*3.8*5 227.8 Coal water slurry
MQY32*36 3200 3600 26.3 18.3 48.4 edge 500 167 14.3*7.3*6 116.94
MQY32*40 3200 4000 29.2 18.2 60
560 980 16.7*7.3*6 121.4
MQY32*45 3200 4500 32.9 18.3 60.5
630 167 13*7.0*5.82 124.23
MQY32*54 3200 5400 39.4 18.3 73
800 167 14.2*7.0*5.82 129
MQY32*64 3200 6400 46.75 18.3 86
1000 167 15.2*7.0*5.8 140
MQY32*75 3200 7500 55.5 18.3 102
1250 743 17.7*8.4*6.3 154
MQY32*90 3200 9000 64.2 18.3 106.6
1250 150 18.5.*7.3*6 173
MQY34*45 3400 4500 37 18.4 74.6
800 167 11.5*7*6.1 129.8
MQY34*56 3400 5600 45.8 17.9 84.3
1120 985 16.7*7.6*6.3

MQY36*45 3600 4500 41.4 17.25 76
1000 167 13*7.3*6.3 144.1
MQY36*50 3600 5000 46.7 17.5 85.96 edge 1250 167 15*7.6*6.2 150
MQY36*50 3600 5000 46.7 17.3 85.96 core 1250 429 23*4.6*6.3 176
MQY36*56 3600 5600 55.4 17.76 106.3 edge 1250 750 14.4*8*6.3 159.7
MQY36*60 3600 6000 55.7 17.3 102.5 core 1250 429 24*4.6*6.3 138.73
MQY36*60 3600 6000 54 17.3 102 edge 1250 167 15.6*8.3*6.3 162.7
MQY36*61 3600 6100 55.36 17.76 106.3
1200 980 15.8*8.5*6.2 164.1
MQY36*85 3600 8500 79 17.4 131
1800 743 20*8.2*7.1 251.89
MQY36*90 3600 9000 83.5 17.4 138 core 1800 743 28*4.6*5.6 286
MQY38*67 3800 6700 70 16.5 130 edge 1400 743 19*8.2*7.1 185.2
MQY40*60 4000 6000 69.8 16 126
1500 200 17.4*9.5*7.6 203.5
MQY40*67 4000 6700 78 16 136.3
1600 200 15.6*9.6*7.3 206.2
MQY40*135 4000 13500 155 16 233
3300 200 23*10*4.9 343 Coal water slurry
MQY43*61 4270 6100 80 15.67 144
1750 200 14*10*7.7 215.3
MQY50*64 5030 6408 120 14.4 251
2600 200 14.6*11*9.1 318.5
MQY50*83 5030 8300 152.3 14.4 266
3300 200 22*10.5*9 402.6
MQY55*65 5500 6500 143.3 13.8 264
3400 200 18.5*9.8*8.9 451.5
MQY50*85 5500 8500 187.4 13.7 335
4500 200 20.5*12*9.8

MQY55*88 5500 8800 191.5 13.7






MQY60*95 6700 9500 249.3 13






MQY67*116 6700 11600 385 12.5






MQY73*115 7300 11500 495 12






MQY80*12000 8000 12000 570.5 11.5
